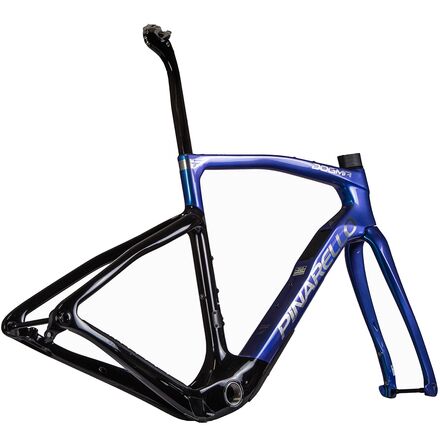

Dogma GR Gravel Frameset
Size:
Quantity
Join Summit Club+ and earn $725.00 cash back!
Fast gravel dominance with the DOGMA GR Gravel Frameset
What Our Gearhead® Experts Are Saying:
"This frameset is built like nothing else I’ve ridden in the gravel category. The DOGMA GR balances stiffness and compliance, with geometry that feels fast on smooth stretches but stable when things get rough. The hidden thru axle and eTICR routing keep the lines clean, while the generous tire clearance makes it easy to tune for any race setup."
We ride gravel to push boundaries, and the DOGMA GR Gravel Frameset gives us the ultimate platform to do it. Pinarello brings its race-winning pedigree into the dirt with geometry that feels as aerodynamic as their fastest road machines, while still delivering the stability we need when the course turns unpredictable.
From the aerodynamic headtube shaping to the eTICR internal routing, every detail has been engineered for efficiency and speed. The adaptive seatpost balances comfort with stiffness, keeping us powerful on uneven terrain, while clearance for up to 45mm tires gives us freedom to choose the right setup for the ride ahead.
Details
- Gravel racing frameset designed for speed and stability
- TorayCa M40X carbon construction with TiCR™ internal routing

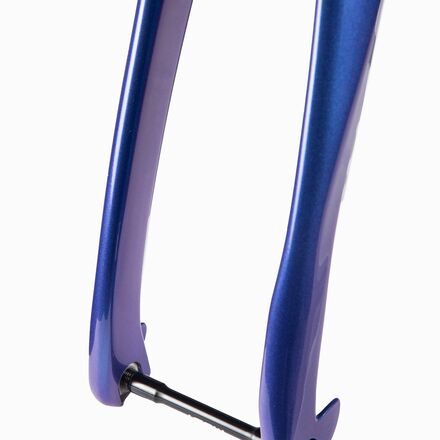

- New eTICR Onda Fork with aerodynamic ForkFlap™

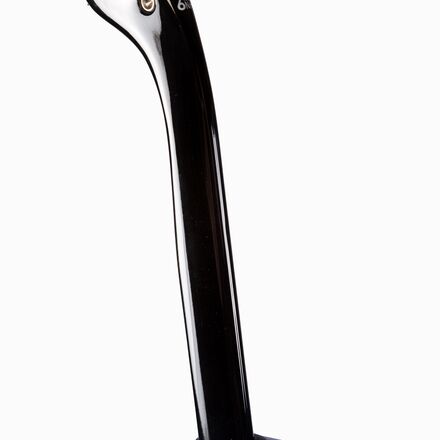

- Adaptive aero seatpost with 3D-printed titanium clamp
- Hidden thru axle system for clean aesthetics and aero gains
- Tire clearance up to 45mm front, 42mm rear for versatility
- Includes frame, fork, seatpost, thru axles, and headset
- Engineered for 700c wheels and electronic drivetrains
- Item #PINI07U
- Frame Material
- TorayCa M40X carbon
- Wheel Size
- 700c
- Fork
- eTICR Onda Fork with ForkFlap™
- Head Tube Diameter
- 1.5in
- SHIS
- EC49/49
- Headset Included
- E-TiCR
- Bottom Bracket Type
- SRAM DUB
- Cable Routing
- TiCR™ (internal)
- Front Derailleur Mount
- braze-on
- Brake Type
- flatmount disc
- Seatpost
- Pinarello Aero
- Seatpost Diameter
- aero
- Front Axle
- 12x100mm
- Rear Axle
- 12x142mm
- Tire Clearance
- [front] 45mm, [rear] 42mm
- Dropouts
- thru-axle
- Activity
- gravel, endurance
- Manufacturer Warranty
- [without registration] limited 2 year, [with registration] limited 5 year
