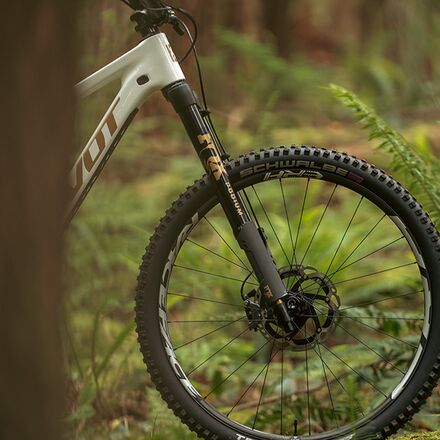

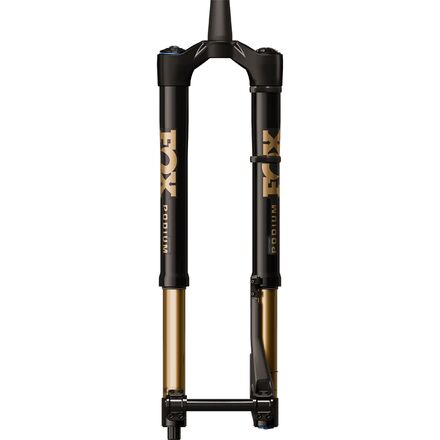

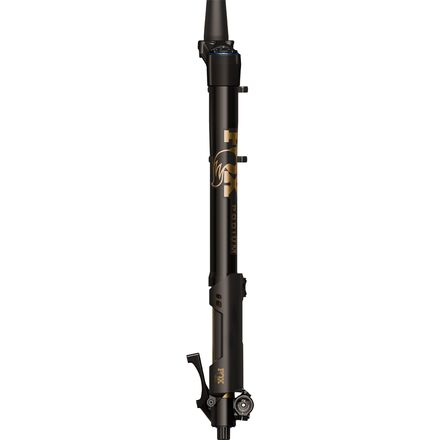

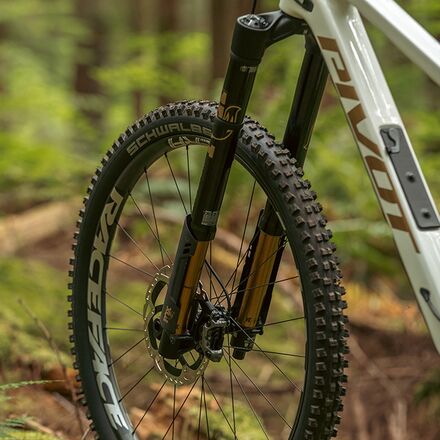

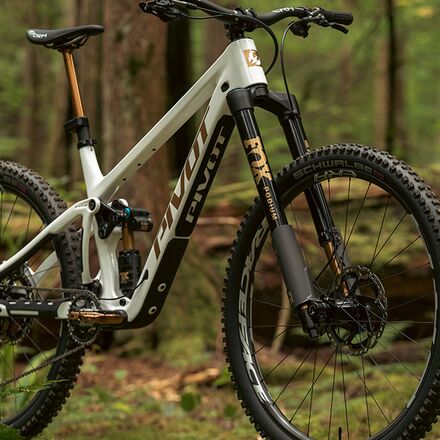

Podium Factory inverted fork delivers downhill-level stiffness and control in a single-crown package
What Our Gearhead® Experts Are Saying:
"The Podium Factory fork is the closest thing to a DH fork you can run on a trail bike. Its inverted chassis, 47mm uppers, and 20mm Boost axle give it unreal stiffness and steering precision, while the GRIP X2 damper and GlideCore air spring keep things smooth and planted through the roughest lines. It’s confidence-inspiring for riders who want to push hard, go big, and never worry about flex."
We ride hard, and the FOX Podium Factory fork lets us push even harder. FOX’s inverted chassis design brings downhill-caliber stiffness and plushness to a single-crown platform, making it a standout for aggressive enduro, eMTB, and big-mountain trail builds. The 47mm upper tubes and massive crown keep the front end rock-solid, so we can charge through rock gardens and steep chutes without hesitation. The GRIP X2 damper and FLOAT EVOL GlideCore air spring deliver off-the-top sensitivity and buttery smooth travel, soaking up everything from small trail chatter to big hits. The 20mm Boost thru-axle and floating axle system maximize torsional stiffness, so steering stays razor-sharp even at race pace. With bushing overlap that rivals DH forks, the Podium Factory feels ultra-planted and tracks predictably, letting us hold a line no matter how rough or fast the trail gets.
Details
- Recommended for aggressive trail, enduro, eMTB, and bike park riding
- Inverted chassis with 47mm upper tubes and massive crown for downhill-level stiffness
- GRIP X2 damper tuned for plushness, support, and consistent traction
- FLOAT EVOL GlideCore air spring reduces friction and improves small-bump sensitivity
- 20x110mm Boost DH axle and floating axle system for optimal torsional stiffness
- 175mm bushing overlap for ultra-smooth movement and reduced flex
- Available in 160mm and 170mm travel options to suit modern aggressive bikes
- Direct 200mm post mount, compatible up to 230mm rotors for maximum stopping power

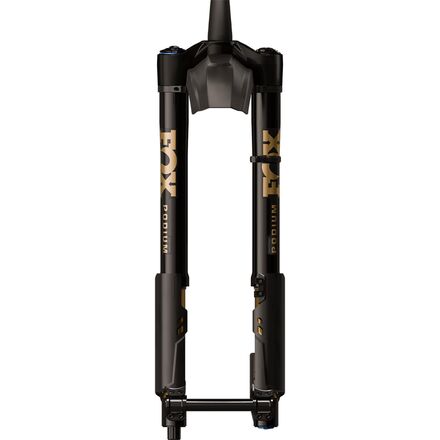

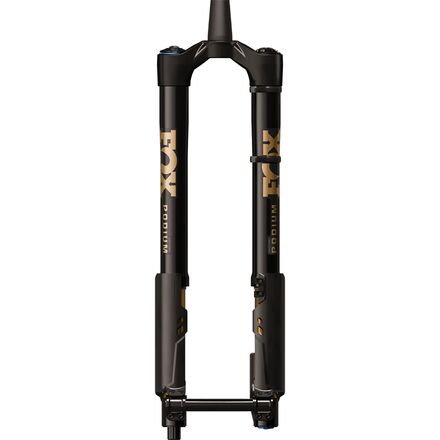

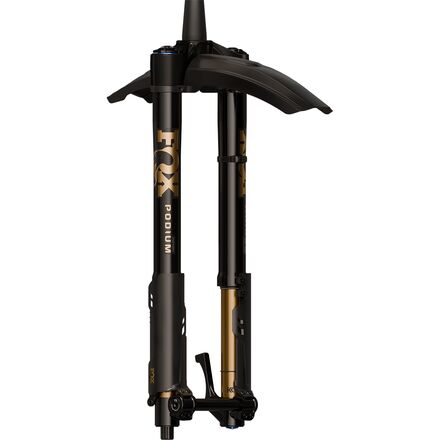

- Optional crown mud guard mount and carbon stanchion guards for protection
- Item #FRSC0BG
- Travel
- 160mm, 170mm
- Stanchion Material
- aluminum, Kashima coating
- Lower Material
- magnesium
- Crown Material
- aluminum
- Wheel Size
- 29in
- Steer Tube Diameter
- 1.5 Tapered
- Spring Type
- FLOAT EVOL GlideCore
- Damper
- Grip X2
- Axle
- 20x110mm
- Brake Compatibility
- Post Mount, disc
- Rotor Compatibility
- 200mm direct, 230mm max
- Claimed Weight
- 5lb 15oz (2695g)
- Manufacturer Warranty
- limited 1 year
- Activity
- trail, enduro
